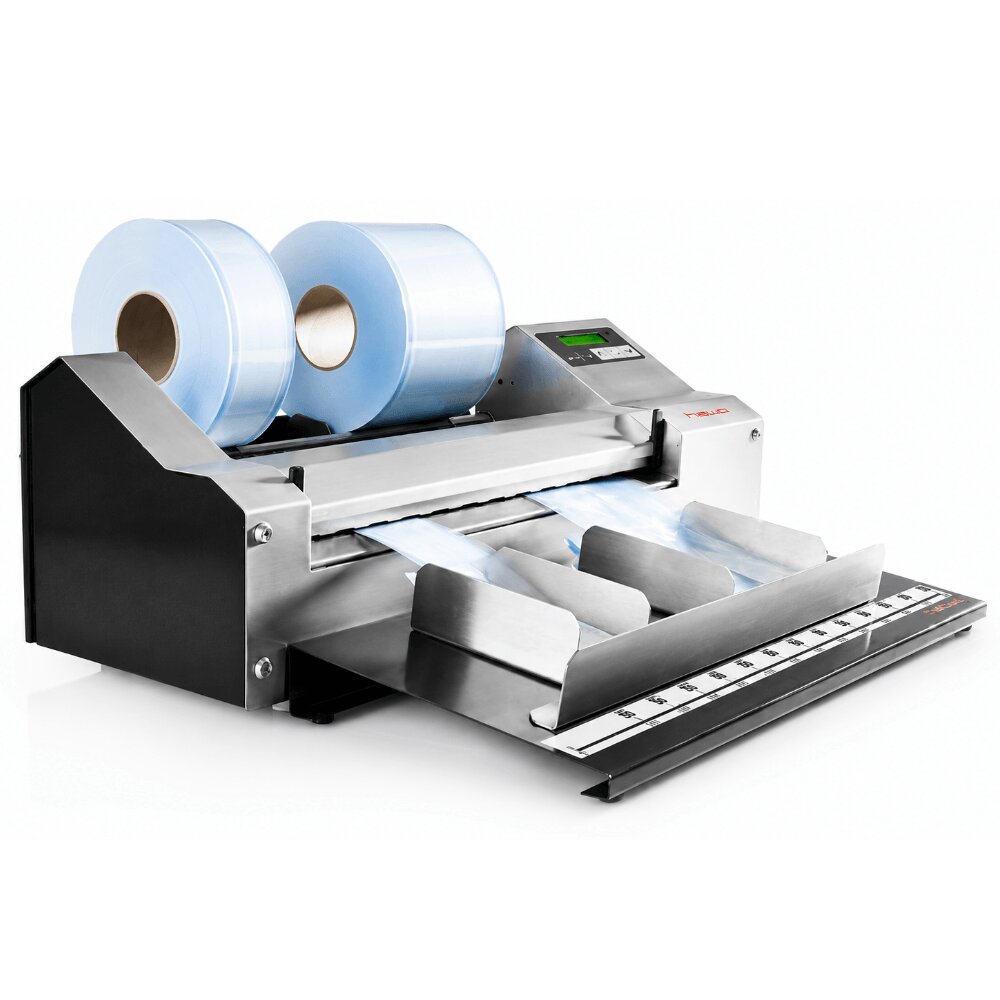

Hawo SealCut, Sealer Machine and Pouch Maker

The hawo SealCut, Sealer Machine and Pouch Maker is a fully automatic, high-throughput pouch-making and heat-sealing system engineered for the efficient production and sealing of sterile barrier systems in hospitals, Central Sterile Supply Departments (CSSDs), and medical device reprocessing facilities. Integrating a multi-roll film dispenser with a precision heat sealer, the system automatically manufactures customized flat or gusseted pouches from standard reels while minimizing material consumption through individually adjustable pouch lengths. The validatable hm 8000 AS-V version provides monitored sealing parameters to support process validation and traceability requirements. With production capacities of up to 4,800 pouches per hour, support for multiple packaging materials including Tyvek®, and extensive connectivity and workflow automation capabilities, the hm 8000 AS / AS-V SealCut delivers exceptional productivity, flexibility, and cost-efficiency in modern sterile packaging environments.

Features

• Fully Automatic Pouch Manufacturing System:
  Combines a reel dispenser and heat sealer to automatically produce sterile pouches from standard reels with customized lengths, reducing material waste and improving efficiency.
• High Productivity and Throughput:
  Operates at up to 13 cycles per minute (>700 cycles/hour) and can manufacture up to 4,800 pouches per hour when using six reels simultaneously, making it ideal for high-volume reprocessing facilities.
• Support for Flat and Gusseted Packaging Materials:
  Suitable for paper-film reels and pouches conforming to EN ISO 11607-1 and EN 868-5, including gusseted materials, Tyvek/plastic structures, and polypropylene fleece or nonwoven materials.
• Validatable Sealing Process (hm 8000 AS-V):
  The AS-V model provides monitored sealing temperature, contact pressure, and sealing time, enabling validated packaging processes and compliance with regulatory requirements.
• Customizable Pouch Dimensions:
  Allows pouch lengths from 10 to 250 cm and production batch quantities from 1 to 1,000 pouches, offering maximum flexibility for various instrument sizes.
• Six-Reel Simultaneous Operation:
  The extra-wide 420 mm reel holder accommodates up to six reels, enabling parallel production and increased workflow efficiency.
• SizeMatic Scale Technology:
  In combination with the optional scanner, automatically determines the optimal pouch length based on instrument dimensions while maintaining all safety distances required by applicable standards, eliminating oversized or undersized pouches.
• Multiple Operating Modes:
  Supports three processing modes:
• • Production mode for fully automatic three-sided pouch manufacturing.
  • Seal-only mode for sealing pre-made pouches after loading.
  • Cutting mode for producing pre-cut, unsealed pouches.
• Variable Seal Positioning (VSD Mode):
  Enables adjustable seal distances between 5 and 50 mm to accommodate different packaging configurations and maintain compliance with ISO/TS 16775 spacing requirements.
• Precision Thermal Sealing System:
  Provides monitored sealing temperatures up to 220 °C, with adjustable sealing times from 0.5 to 10 seconds and a uniform seal width of 12 ± 1 mm.
• Integrated IntelligentScan Compatibility:
  Allows rapid selection of pre-programmed sealing parameters via barcode scanning, simplifying operation and ensuring process consistency.
• Comprehensive Connectivity:
  Equipped with USB A/B and RS-232 interfaces for integration with batch documentation systems and optional label printers for traceability and labeling applications.
• Optional Sorting Module (hm 8000 SD):
  Enables automatic sorting and organization of finished pouches by size, facilitating downstream packaging and wrapping processes.
• Compact, Space-Saving Design:
  Requires no inlet or outlet clearance on either side and occupies only 740 × 355 × 240 mm, allowing installation even in limited workspaces.
• Energy-Efficient Operation:
  Consumes only 200 W and incorporates automatic start and standby functions in accordance with hawo GreenTek principles for reduced energy consumption.
• Robust Stainless-Steel Construction:
  Features a durable stainless-steel housing weighing approximately 29 kg, ensuring long-term reliability and simplified maintenance.
