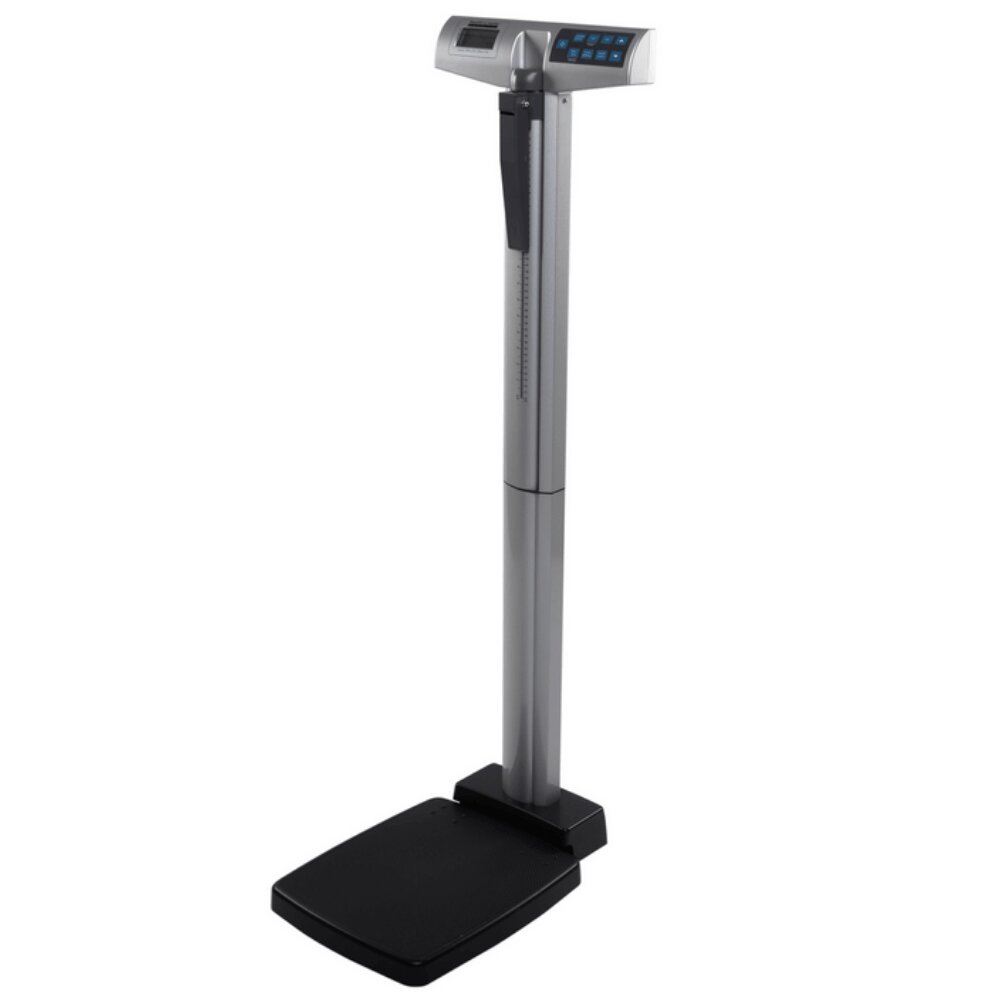

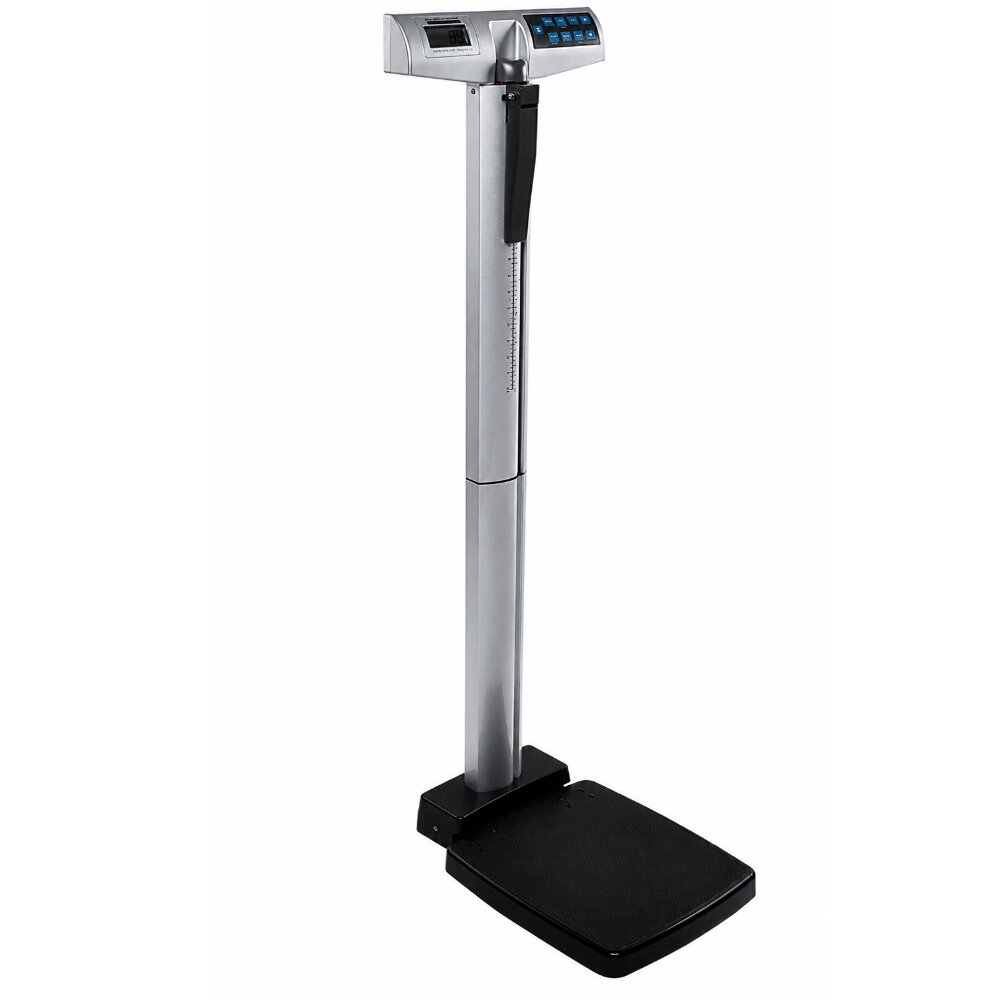

Digital Eye Level Scale with Stadiometer, BMI Measurement, Up to 250 KG

The Health o meter Professional 500KL is an all-digital, clinical-grade eye-level physician scale engineered to deliver high accuracy, structural longevity, and seamless workflow integration for hospitals, medical clinics, and long-term care facilities. Designed with a maximum load capacity of up to 250 kg (550 lb) and a precise resolution of 0.1 kg (0.2 lb), this premium diagnostic system accommodates a wide patient demographic. It features an integrated mechanical stadiometer (height rod) built directly into the scale column, facilitating simultaneous height and weight tracking to automatically calculate Body Mass Index (BMI). For enhanced structural safety and mobility, the device incorporates a reinforced, rust-proof low-profile platform alongside a best-in-class extra-wide 8-inch wheelbase for easy transport between clinical stations. Advanced connectivity options support wireless integration with electronic medical record (EMR) systems, eliminating manual data entry risks.

Features:

• High-Capacity Diagnostic Performance: Calibrated to measure patient weights up to 250 kg (550 lb) with a scientific resolution of 0.1 kg (0.2 lb) for reliable, fine-tuned tracking.

• Integrated Eye-Level Stadiometer: Features a built-in height rod with a measuring range of 76 cm to 214 cm (30”–84 1/4”) and ultra-precise 1 mm (1/8”) graduations, positioned at eye level for quick, convenient reading.

• Advanced Body Mass Index (BMI) Interface: Outfitted with a user-friendly digital display panel featuring a 1-inch (25 mm) LCD screen that automatically calculates a patient's BMI upon height and weight input.
• Exclusive Everlock® Unit Standardization: Features proprietary Everlock® firmware, allowing clinical administrators to permanently lock the scale's measuring unit exclusively to kilograms (KG) or pounds (LB) to eliminate medical dosing errors.

• Electronic Medical Record (EMR) Compatibility: Engineered to interface seamlessly with modern healthcare EMR software and central networks via optional Pelstar® wireless technology.

• Heavy-Duty, Ergonomic Base Design: Constructed with a low-profile, dent-proof, and rust-proof platform measuring 349 mm x 419 mm x 60 mm with a non-skid surface to promote patient stability.

• Best-in-Class Portability: Equipped with a wide 8-inch wheelbase and two rear-mounted transport wheels, allowing effortless relocation across various facility floor plans.

• Dual Power Supply Engineering: Operates portably via 6 standard AA batteries (included) or can be powered continuously utilizing an optional medical-grade AC power adapter.
• Optional Handlebar Integration: Supports the retrofitting of the 500HB "live" wrap-around handlebar accessory to provide enhanced mechanical stability for frail or bariatric patients without compromising sensor accuracy.

Documents:

• Brochure
